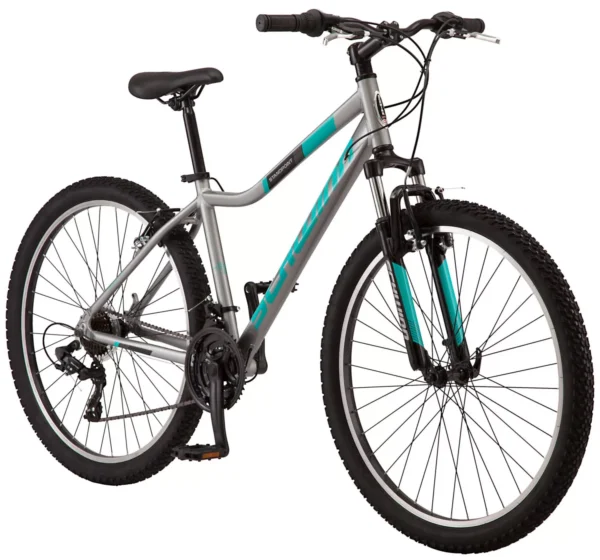

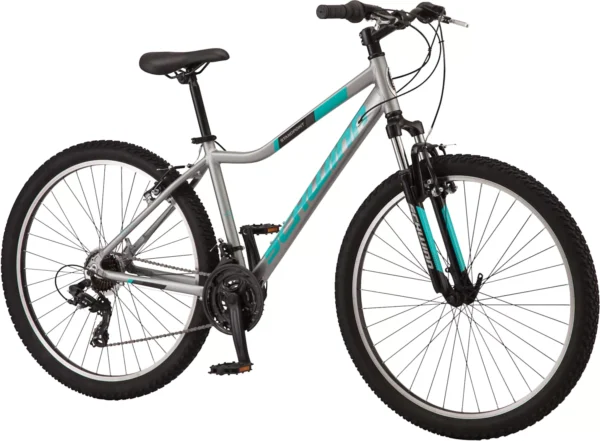

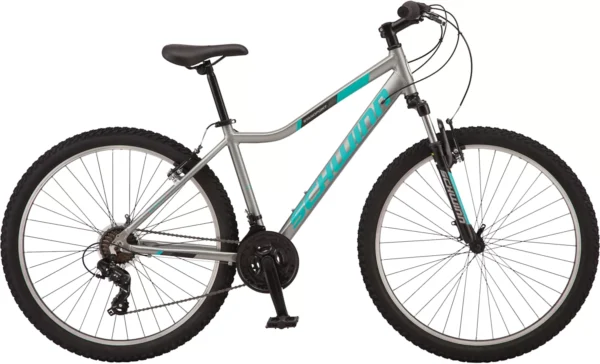

The Standpoint is a Schwinn® Signature mountain bike that features an aluminum mountain frame with Schwinn suspension fork for controlled riding on the trail. 21 speed twist shifters provide quick gear changes, while front and rear v-brakes deliver crisp stops. Plus, 27.5 x 2.2-inch all-terrain tires give you go-anywhere traction.
The manufacturer may substitute components with components of equal or greater performance level.
DESIGN:
- Mountain bike
- Aluminum mountain frame
- Designed for controlled riding in hard environments
- 21 speeds
- Made for quick gear changes
- Front and rear breaks
Specifications
| Wheel Size: | 27.5″ |
| Frame: | 6061 aluminum, 27.5″ mountain tuned geometry, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube |
| Fork: | Schwinn, 27.5″, steel steerer, 9 mm x 100 mm QR, 60 mm travel |
| Headset: | Threadless, EC34 |
| Crank: | Schwinn aluminum mountain, 42/34/24T |
| Bottom Bracket: | Semi-cartridge, square taper, 68 mm |
| Front Derailleur: | 31.8 mm clamp |
| Rear Derailleur: | 7-spead gearing |
| Cog Set: | 7-speed, 14-28T |
| Shifters: | Twist shifters, 20-speed |
| Speeds: | 21 |
| Chain: | 7-speed type |
| Front Hub: | Steel, 9 mm x 100 mm QR, 36H |
| Rear Hub: | Steel, 135 mm bolt-on, 36H |
| Spokes: | 14G, steel |
| Rims: | Aluminum, 36H |
| Tires: | Schwinn mountain, 27.5 in x 2.2 in, wire bead |
| Brakes: | V-brake, aluminum |
| Brake Levers: | aluminum |
| Pedals: | Schwinn platform, nylon |
| Handlebar: | Steel, 620 mm width, 20 mm rise |
| Grips: | Schwinn mountain Kraton |
| Stem: | Aluminum, threadless, 10° rise |
| Saddle: | Schwinn mountain, steel rails |
| Seat Post: | Steel, 300 mm, 27.2 mm |
